Specification

Main Board Specification...

Processor:Intel ® J1900 Quad Core 2.41GHz

RAM:0GB (installed) up to 8GB DDR3

HDD:No HDD (installed) 2.5" HDD - mSATA (upgradeable)

Size:175 x 185 mm

Upgrade
Mini PCIe 30.00mm x 50.95mm
Sim Card Holder

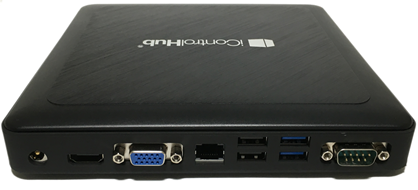

Rear Panel...

USB:2x USB 2.0 2x USB 3.0

Video Output:VGA/HDMI

Power:12VDC

Networking:Ethernet (1000BASE-T)

1 x RS232

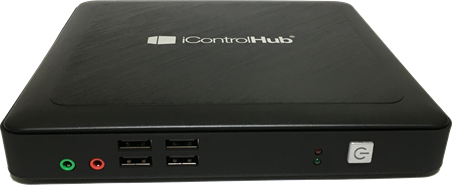

Front Panel...

USB:4x USB 2.0

Mic

Audio

Power Switch
